Description
Description
PPI-26-1S type flares are used to protect aircraft (either helicopters or airplanes) against any guided missiles equipped with infrared seekers. Flares create false infrared targets and drag approached missiles to the distance safe for protected aircraft.
Flares are expendables and can be deployed on the aircraft equipped with different dispensers for ejecting flares from aircrafts and helicopters.
Technical Data
Techical Data
|
Designation
Caliber (mm)
Length (mm)
Weight (kg)
Ejection velocity (m/s)
Burning time (s)
Infrared radiation intensity, range (2,0 ... 3,0)mcm (kW/sr)
Infrared radiation intensity, range (3,0 ... 5,0)mcm (kW/sr)
Time, to reach max intensity (s)
Operational temperature (ºC)
Electrical resistance of circuit kindle (Ω)
|
PPI-26-1S
max 26,5
85
0,09
30 ± 10
2,1 - 2,6
6,3 - 7,2
4,2 - 4,8
0,6 ± 0,1
±50
0,15 - 0,80
|

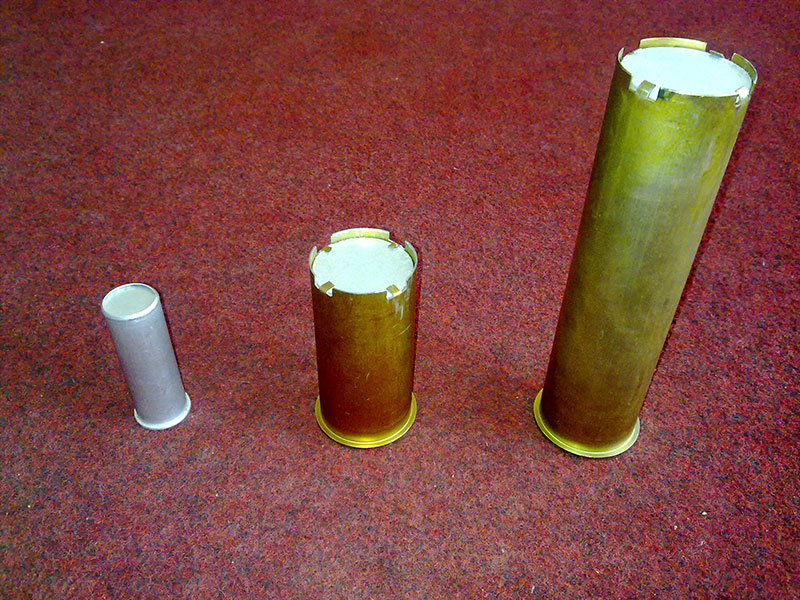

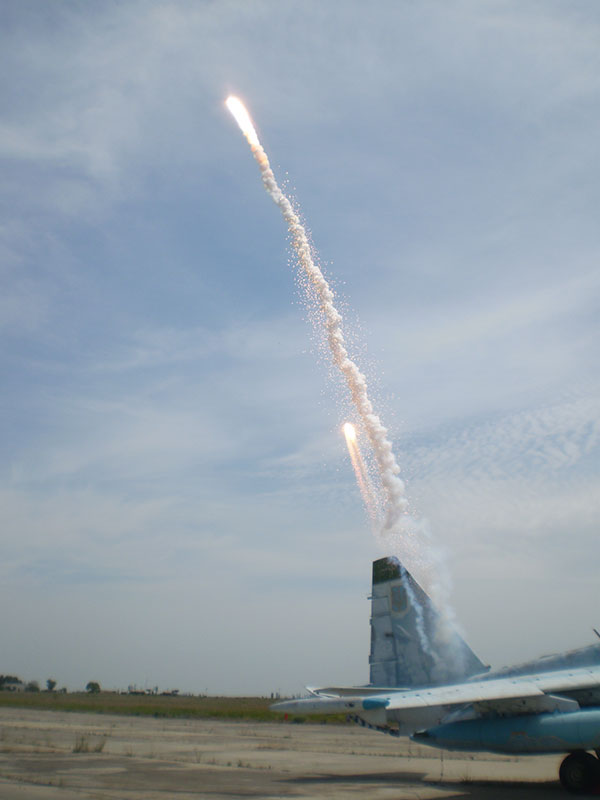

Multimedia
Product Images and Videos
