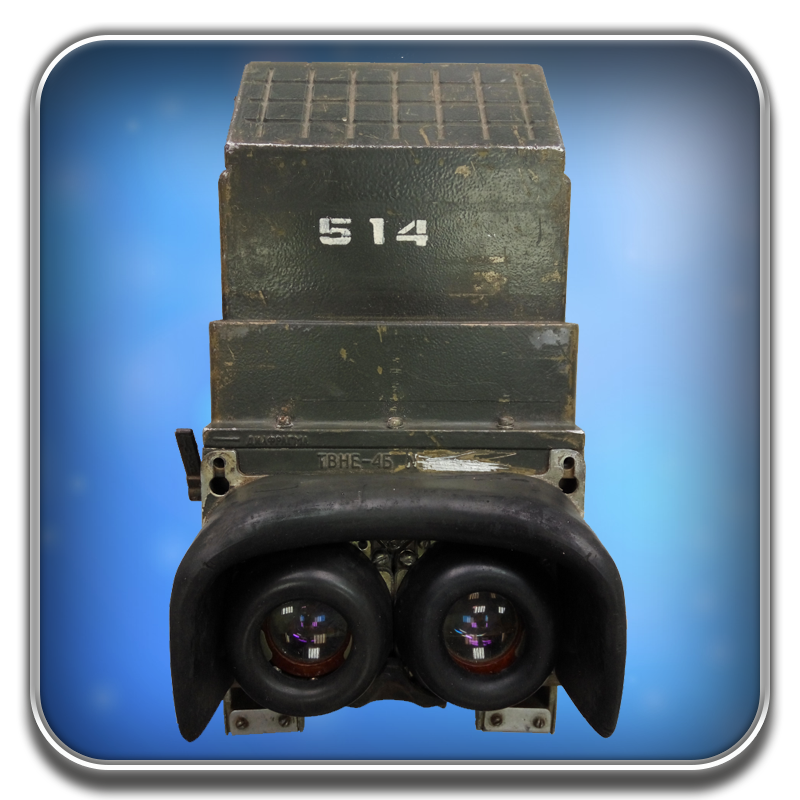

Periscope device of supervision and orientation of the driver-mechanic of TVNE-4 MBT series used for tank Т-64, T-72, T-80, T-84, BM Oplot, BTR-4, BTR-3, BTR-80
Technical Data
Techical Data
|
Designation Weight, kg
Function Construction Visibility of the roadway, at least m
External factors of influence Input voltage Influence of the light Time of continuous work
Range of working conditions |
TVNE-4 MBT 2,9
Designed to provide visibility when driving cars of armored, artillery and other equipment during the day and night
Thermal imaging microbolometer sensor
400m The sight meets the requirements mechanical environment and climatic environment in accordance with the requirements of group 1.10 GOST В 20.39.304-76, climatic execution of UHL (exceed MIL STD810*)
27(+2…. -5) power supply from on-board network of armored objects
High resistance to light interference. The device is not sensitive to the illumination of IR illuminators and other sources of intense luminescence
24 hours
Operating temp, С -40/+50 Storage temp, С -45/+70 |
differences from the standard (regular) device of armored objects - TVNE-4
Without changes
Designed to provide visibility when driving machines of armored, artillery and other equipment AT NIGHT TIME
Image intensifier Active mode - 120 m
Passive mode - 80 m Without changes Without changes LOW resistance to light interference. The device is sensitive to the illumination of IR illuminators and other sources of intense luminescence
6 hours
Without changes |
