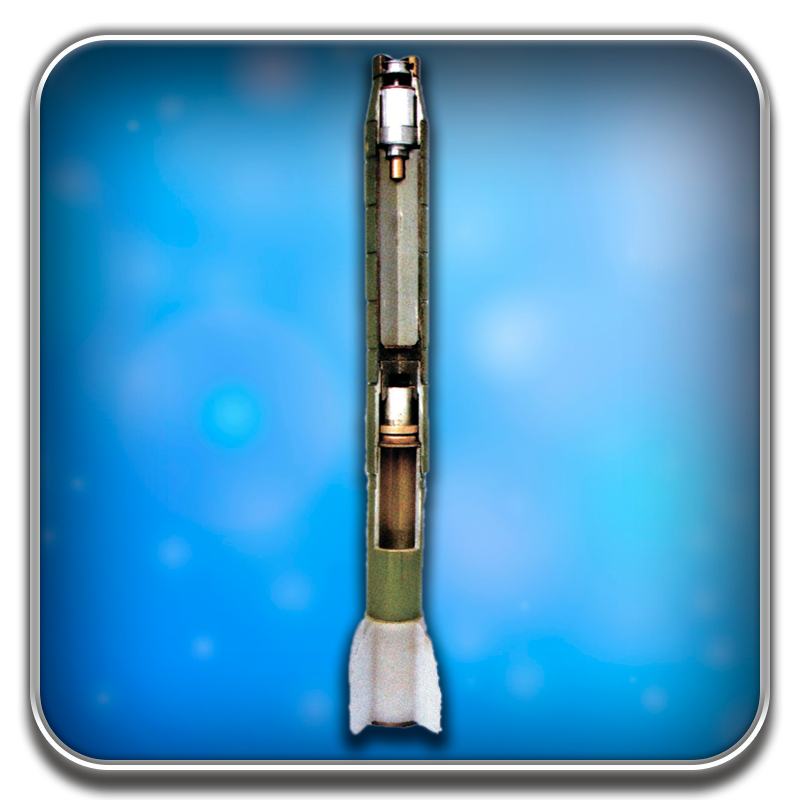

Rifle Grenade 30mm HE – M91, P1 with Bullet Trap

Technical Data

Techical Data
NATO designation
Type
Length (mm)
Mass (g)
Fuze
Safety distance (m)

Arming distance (m)
Grenade effect at pen test D = 20m and 1,5m high
Grenade effect at pen test D = 10m and 1,5m high
Action on fragments in field (m)
Muzzle velocity / 5,56 x 45 SS 109 (m/s)
Muzzle velocity / 7,62 x 51 (m/s)
Max range / 5,56 x 45 SS 109 (m)
Max range / 7,62 x 51 (m)
Effective range / 5,56 x 45 SS 109 (m)
Effective range / 7,62 x 51 (m)

Accuracy (firing at angle 14º)
HE
fragmentation
315
555
impact, superquick action (UT-M91, P1)
min 20 m in front of barrel
grenade must act. upon cardboard 2mm thick, at the distance of 50m
min 180 penetrations,board 20mm thick
min 350 penetrations,board 20mm thick
100m in dia.
58
72
300
450
150
250
Rmax - Rmin = max 15m
(span in travers max 3m)
